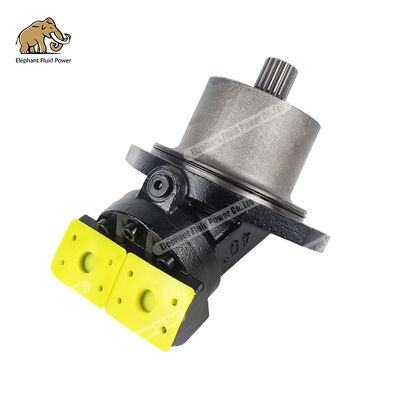

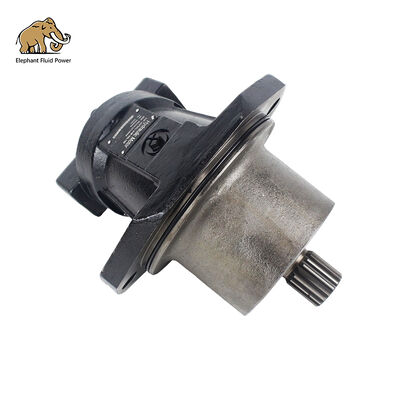

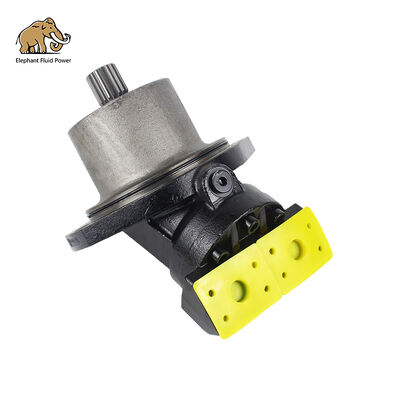

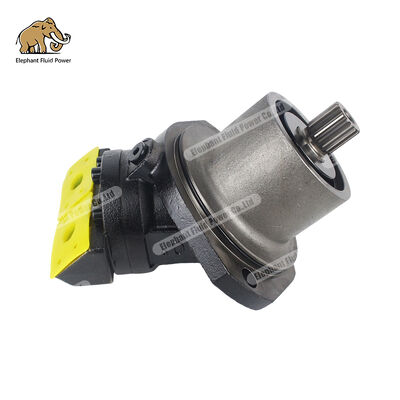

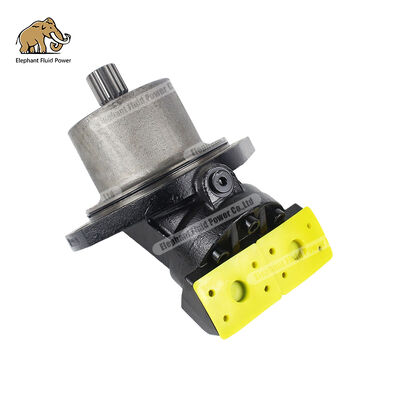

Rexroth A2FE90 AXIAL-PISTON MOTOR 28, 32, 45, 56, 63, 80, 90, 107, 125, 160, 180, 250, 355 cm³/rev untuk penggerak truk
ItuMotor hidrolik tipe A2FE Rexrothadalah motor piston aksial plug-in bertekanan tinggi dengan perpindahan tetap yang dirancang untuk aplikasi kompak dan tugas berat seperti track drive. Ini menampilkan desain sumbu bengkok dan tersedia dalam perpindahan mulai dari28 hingga 355 cc/putaran, dengan tekanan hingga 450 bar.
| Ukuran |
28 |
32 |
107 |
125 |
160 |
180 |
250 |
355 |
| Perpindahan geometris, per revolusi |
Vg |
cm3 |
28.1 |
32 |
106.7 |
125 |
160.4 |
180 |
250 |
355 |
| Tekanan nominal |
Pnom |
batang |
400 |
400 |
400 |
400 |
400 |
400 |
350 |
350 |
| Tekanan maksimum |
Pmaks |
batang |
450 |
450 |
450 |
450 |
450 |
450 |
400 |
400 |
| Kecepatan maksimum 1) |
tidak |
rpm |
6300 |
6300 |
4000 |
4000 |
3600 |
3600 |
2700 |
2240 |
| nmax 2) |
rpm |
6900 |
6900 |
4400 |
4400 |
4000 |
4000 |
|
|
| Aliran masuk 3) pada nnom |
qv |
aku/menit |
177 |
202 |
427 |
500 |
577 |
648 |
675 |
795 |
| Torsi 4) pada pnom |
M |
Nm |
179 |
204 |
679 |
796 |
1021 |
1146 |
1393 |
1978 |
| Kekakuan putar |
C |
kNm/
rad |
2.93 |
3.12 |
11.2 |
11.9 |
17.4 |
18.2 |
73.1 |
96.1 |
| Momen inersia kelompok putar |
JTW |
kg.m2 |
0,0012 |
0,0012 |
0,0116 |
0,0116 |
0,022 |
0,022 |
0,061 |
0,102 |
| Percepatan sudut maksimum |
α |
rad/s2 |
6500 |
6500 |
4500 |
4500 |
3500 |
3500 |
10.000 |
8300 |
| Volume kasus |
V |
SAYA |
0,2 |
0,2 |
0,8 |
0,8 |
1.1 |
1.1 |
2.5 |
3.5 |
| Berat (kira-kira) |
M |
kg |
10.5 |
10.5 |
34 |
36 |
47 |
48 |
82 |
110 |
Model:
R902137649 MOTOR PISTON AKSIAL A2FE90/61W-VAL100
Jika Anda memerlukan A2FE, atau mode pompa piston lainnya, jangan ragu untuk menghubungi kami.
Jangan lupa bagikan foto papan nama dan model pompa atau motor lengkap.
Tentang Elephant Fluid Power selaku pabrik langsung pompa hidrolik Rexroth, untuk Motor A2FE kami menyediakan :
- Desain yang sama seperti Rexroth
- Performa yang sama
- Suku cadang internal yang sama
- Garansi nyata
Kami juga menyediakan Pompa OEM Rexroth lainnya.
| A2F |
A2FE |
A4VG |
A4VSO |
A7VM |
A10VSO |
A4FM |
| A2FO |
A4FO |
A4VTG |
A6VM |
A8VO |
A11VO |
A20VL190 |
Tentang kekuatan Cairan Gajah:
Menguasai Tenaga, Teguh Seperti Gajah – Elephant Fluid, Mitra Tenaga Hidraulik Global Anda yang Andal Elephant Fluid adalah perusahaan perdagangan luar negeri yang mengkhususkan diri dalam penelitian dan pengembangan, produksi, dan penjualan komponen tenaga hidrolik inti. Sejak didirikan, kami telah terlibat secara mendalam dalam bidang hidrolik, dengan produk utama kami meliputi pompa hidrolik kinerja tinggi, motor hidrolik, dan solusi sistem hidrolik lengkap. Kami sangat memahami bahwa tenaga hidrolik yang stabil dan andal adalah landasan pengoperasian yang efisien pada mesin berat, peralatan teknik, otomasi industri, dan teknik kelautan. Oleh karena itu, Elephant Fluid menganut filosofi inti "Menguasai Kekuatan dengan Keanggunan", yang menanamkan teknologi mutakhir dan keahlian luar biasa ke dalam setiap produk. Pompa dan motor hidraulik kami terkenal dengan keluarannya yang bertenaga, efisiensi yang unggul, dan masa pakai yang lebih lama, mempertahankan kinerja yang stabil bahkan dalam kondisi pengoperasian yang paling menuntut, sekuat dan tenang seperti gajah. Dengan sistem kontrol kualitas yang ketat, harga yang kompetitif, dan rantai pasokan global yang tangkas, produk-produk Elephant Fluid telah diekspor ke banyak negara dan wilayah di seluruh dunia, termasuk Eropa, Amerika Utara, Asia Tenggara, dan Timur Tengah, sehingga mendapatkan kepercayaan dan kerja sama jangka panjang dari banyak pelanggan internasional. Kami bukan hanya pemasok produk, tetapi juga mitra terpercaya bagi pelanggan kami. Elephant Fluid berkomitmen untuk memberikan dukungan daya berkelanjutan kepada pelanggan global melalui dukungan teknis profesional, respons purna jual yang cepat, dan layanan yang disesuaikan, membantu peralatan dan bisnis Anda mencapai pengembangan yang stabil dan jangka panjang.
Lebih banyak Model A2FE90 yang kami suplai.
| REXROTH MNR |
MODEL LENGKAP |
| R902004370 |
A2FE90/61W-NAL181-K |
| R909611015 |
A2FE90/61W-NAL190 |
| R909610137 |
A2FE90/61W-NAL190 |
| R909610138 |
A2FE90/61W-NAL192-K |
| R909605713 |
A2FE90/61W-NAL200D |
| R909605714 |
A2FE90/61W-NAL200D-K |
| R902009974 |
A2FE90/61W-NAL300 |
| R902014440 |
A2FE90/61W-NAL300-J |
| R909603786 |
A2FE90/61W-NZL181-K |
| R909448518 |
A2FE90/61W-NZL181-K |
| R909603838 |
A2FE90/61W-NZL181-K |
| R909441172 |
A2FE90/61W-NZL196 |
| R909603835 |
A2FE90/61W-PAL100-S |
| R909446565 |
A2FE90/61W-PAL100-S |
| R902225628 |
A2FE90/61W-PAL188 |
| R902248467 |
A2FE90/61W-VAL020 |
| R902090476 |
A2FE90/61W-VAL020-S |
| R902138109 |
A2FE90/61W-VAL020-S |
| R902160983 |
A2FE90/61W-VAL020-S |
| R902138108 |
A2FE90/61W-VAL020-S |
| R902160897 |
A2FE90/61W-VAL020F |
| R902101625 |
A2FE90/61W-VAL020F-S |
| R902101627 |
A2FE90/61W-VAL020F-SK |
| R902018421 |
A2FE90/61W-VAL027 |
| R902165899 |
A2FE90/61W-VAL027 |
| R902073553 |
A2FE90/61W-VAL027-S |
| R909437384 |
A2FE90/61W-VAL027-S |
| R902165023 |
A2FE90/61W-VAL027-S |
| R902137519 |
A2FE90/61W-VAL027-S |
| R902161461 |
A2FE90/61W-VAL027-S |
| R902150298 |
A2FE90/61W-VAL029V |
| R909416951 |
A2FE90/61W-VAL100 |
| R902137841 |
A2FE90/61W-VAL100 |
| R902155644 |
A2FE90/61W-VAL100 |
| R902150333 |
A2FE90/61W-VAL100 |
| R902257789 |
A2FE90/61W-VAL100 |
| R902161489 |
A2FE90/61W-VAL100 |
| R902137836 |
A2FE90/61W-VAL100 |
| R902137837 |
A2FE90/61W-VAL100 |
| R902248213 |
A2FE90/61W-VAL100 |
| R902137832 |
A2FE90/61W-VAL100 |
| R902137840 |
A2FE90/61W-VAL100 |
| R902137828 |
A2FE90/61W-VAL100 |
| R902137829 |
A2FE90/61W-VAL100 |
| R902137830 |
A2FE90/61W-VAL100 |
| R902223337 |
A2FE90/61W-VAL100 |
| R902137831 |
A2FE90/61W-VAL100 |
| R902137649 |
A2FE90/61W-VAL100 |
| R902137838 |
A2FE90/61W-VAL100 |
| R902165022 |
A2FE90/61W-VAL100 |
| R902161242 |
A2FE90/61W-VAL100 |
| R902220947 |
A2FE90/61W-VAL100 |
| R902073622 |
A2FE90/61W-VAL100-S |
| R902138195 |
A2FE90/61W-VAL100-S |
| R902247065 |
A2FE90/61W-VAL100-S |
| R902233795 |
A2FE90/61W-VAL100-S |
| R902225781 |
A2FE90/61W-VAL100-S |
| R902207114 |
A2FE90/61W-VAL100F |
| R909442542 |
A2FE90/61W-VAL106 |
| R902138049 |
A2FE90/61W-VAL106 |
| R902155643 |
A2FE90/61W-VAL106 |
| R902138047 |
A2FE90/61W-VAL106 |
| R909446074 |
A2FE90/61W-VAL106-S |
| R902161284 |
A2FE90/61W-VAL106-S |
| R992001640 |
A2FE90/61W-VAL106-S |
| R909438501 |
A2FE90/61W-VAL180 |
| R902035123 |
A2FE90/61W-VAL180-S |
| R902004483 |
A2FE90/61W-VAL180J |
| R902161093 |
A2FE90/61W-VAL181 |
| R902155049 |
A2FE90/61W-VAL181 |
| R902165314 |
A2FE90/61W-VAL181 |
| R902170144 |
A2FE90/61W-VAL181 |
| R902165099 |
A2FE90/61W-VAL181 |
| R902198142 |
A2FE90/61W-VAL181 |
| R902193106 |
A2FE90/61W-VAL181 |
| R902165273 |
A2FE90/61W-VAL181 |
| R902193812 |
A2FE90/61W-VAL181 |
| R902155789 |
A2FE90/61W-VAL181 |
| R902165576 |
A2FE90/61W-VAL181 |
| R902155746 |
A2FE90/61W-VAL181 |
| R902165011 |
A2FE90/61W-VAL181 |
| R902203496 |
A2FE90/61W-VAL181 |
| R902215071 |
A2FE90/61W-VAL181 |
| R902067665 |
A2FE90/61W-VAL181-K |
| R902060294 |
A2FE90/61W-VAL181-K |
| R902088963 |
A2FE90/61W-VAL181-K |
| R902100039 |
A2FE90/61W-VAL181-K |
| R902099023 |
A2FE90/61W-VAL181-K |
| R909604874 |
A2FE90/61W-VAL181-K |
| R902063895 |
A2FE90/61W-VAL181-K |
| R902107584 |
A2FE90/61W-VAL181-K |
| R902080550 |
A2FE90/61W-VAL181-K |
| R902115582 |
A2FE90/61W-VAL181-K |
| R902126845 |
A2FE90/61W-VAL181-K |
| R902117997 |
A2FE90/61W-VAL181-K |
| R902035125 |
A2FE90/61W-VAL181-KS |
| R902201554 |
A2FE90/61W-VAL181-S |
| R902050543 |
A2FE90/61W-VAL181-SK |
| R902101262 |
A2FE90/61W-VAL181-SK |
| R992000072 |
A2FE90/61W-VAL181-SK |
| R902204882 |
A2FE90/61W-VAL181F |
| R902004484 |
A2FE90/61W-VAL181J-K |
| R902165745 |
A2FE90/61W-VAL188 |
| R902248105 |
A2FE90/61W-VAL188 |
| R902165983 |
A2FE90/61W-VAL188 |
| R902223317 |
A2FE90/61W-VAL188 |
| R902115951 |
A2FE90/61W-VAL190FJ |
| R902004493 |
A2FE90/61W-VAL190J |
| R902060244 |
A2FE90/61W-VAL190JD |
| R902165119 |
A2FE90/61W-VAL191FJ |
| R902115953 |
A2FE90/61W-VAL191FJ-K |
| R902165274 |
A2FE90/61W-VAL191J |
| R902165434 |
A2FE90/61W-VAL191J |
| R902165117 |
A2FE90/61W-VAL191J |
| R902165118 |
A2FE90/61W-VAL191J |
| R902165116 |
A2FE90/61W-VAL191J |
| R902201593 |
A2FE90/61W-VAL191J |
| R902225680 |
A2FE90/61W-VAL191J |
| R902031796 |
A2FE90/61W-VAL191J-K |
| R902004485 |
A2FE90/61W-VAL192J |
| R902197626 |
A2FE90/61W-VAL192J |
| R902197850 |
A2FE90/61W-VAL192J |
| R909611016 |
A2FE90/61W-VAL192J-K |
| R902014263 |
A2FE90/61W-VAL192J-SK |
| R902060246 |
A2FE90/61W-VAL192JD-K |
| R902241848 |
A2FE90/61W-VBL100 |
| R902090316 |
A2FE90/61W-VBL100-S |
| R902161375 |
A2FE90/61W-VBL100F-S |
| R902092672 |
A2FE90/61W-VZL027-E |
| R902096759 |
A2FE90/61W-VZL027-E |
| R902203100 |
A2FE90/61W-VZL027-S |
| R902156026 |
A2FE90/61W-VZL027-S |
| R902204521 |
A2FE90/61W-VZL027-S |
| R909420230 |
A2FE90/61W-VZL100 |
| R902233621 |
A2FE90/61W-VZL100-S |
| R902160914 |
A2FE90/61W-VZL100-S |
| R902137898 |
A2FE90/61W-VZL100-S |
| R902137862 |
A2FE90/61W-VZL100-S |
| R902138495 |
A2FE90/61W-VZL100F-S |
| R902014185 |
A2FE90/61W-VZL106 |
| R902137513 |
A2FE90/61W-VZL106-S |
| R909441133 |
A2FE90/61W-VZL180 |
| R902067754 |
A2FE90/61W-VZL181-K |
| R909610313 |
A2FE90/61W-VZL181-K |
| R902068858 |
A2FE90/61W-VZL181-K |
| R902038748 |
A2FE90/61W-VZL181-K |
| R902040445 |
A2FE90/61W-VZL181-K |
| R902063502 |
A2FE90/61W-VZL181-K |
| R902121684 |
A2FE90/61W-VZL181-K |
| R902215350 |
A2FE90/61W-VZL188-S |
| R902065770 |
A2FE90/61W-VZL190J |
| R902065907 |
A2FE90/61W-VZL191J-K |
| R902065772 |
A2FE90/61W-VZL192J-S |
| R902197857 |
A2FE90/61W-VZL192J-S |
| R902165315 |
A2FE90/61W-VZL192J-S |
| R909418430 |
AA2FE90/61W-NAL600-S |
